Code for beginner to learn how to use SIF4Sci¶
In this notebook, we will show you the basic usage to apply SIF to prepare data for conducting scientific experiments.

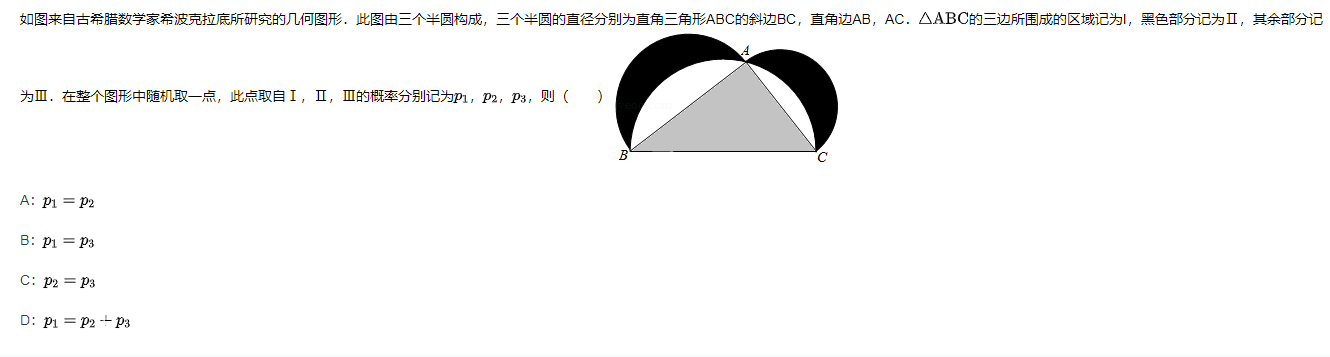

We use the demo item (an exercise from LUNA) shown in the following Figure.
. The SIF expression of this item can be written as follows:
[1]:
item = {
"stem": r"如图来自古希腊数学家希波克拉底所研究的几何图形．此图由三个半圆构成，三个半圆的直径分别为直角三角形$ABC$的斜边$BC$, 直角边$AB$, $AC$.$\bigtriangleup ABC$的三边所围成的区域记为$I$,黑色部分记为$II$, 其余部分记为$III$.在整个图形中随机取一点，此点取自$I,II,III$的概率分别记为$p_1,p_2,p_3$,则$\SIFChoice$$\FigureID{1}$",
"options": ["$p_1=p_2$", "$p_1=p_3$", "$p_2=p_3$", "$p_1=p_2+p_3$"]
}
item["stem"]
[1]:
'如图来自古希腊数学家希波克拉底所研究的几何图形．此图由三个半圆构成，三个半圆的直径分别为直角三角形$ABC$的斜边$BC$, 直角边$AB$, $AC$.$\\bigtriangleup ABC$的三边所围成的区域记为$I$,黑色部分记为$II$, 其余部分记为$III$.在整个图形中随机取一点，此点取自$I,II,III$的概率分别记为$p_1,p_2,p_3$,则$\\SIFChoice$$\\FigureID{1}$'
[2]:
from PIL import Image
img = Image.open("../../asset/_static/item_figure.png")
figures = {"1": img}
[2]:
Preparation¶
[3]:
from EduNLP.SIF import sif4sci
Verification¶
Auto Correction¶
Segment and Tokenization¶
After we verify an item obeys SIF, we can further process it, i.e., segment and tokenization.
Segment¶
[4]:
sif4sci(item["stem"], figures=figures, tokenization=False, symbol="tfgm")
[4]:
['[TEXT]', '[FORMULA]', '[TEXT]', '[FORMULA]', '[TEXT]', '[FORMULA]', '[TEXT]', '[FORMULA]', '[TEXT]', '[FORMULA]', '[TEXT]', '[FORMULA]', '[TEXT]', '[FORMULA]', '[TEXT]', '[FORMULA]', '[TEXT]', '[FORMULA]', '[TEXT]', '[FORMULA]', '[TEXT]', '[MARK]', '[FIGURE]']
[5]:
segments = sif4sci(item["stem"], figures=figures, tokenization=False)
segments
[5]:
['如图来自古希腊数学家希波克拉底所研究的几何图形．此图由三个半圆构成，三个半圆的直径分别为直角三角形', 'ABC', '的斜边', 'BC', ', 直角边', 'AB', ', ', 'AC', '.', '\\bigtriangleup ABC', '的三边所围成的区域记为', 'I', ',黑色部分记为', 'II', ', 其余部分记为', 'III', '.在整个图形中随机取一点，此点取自', 'I,II,III', '的概率分别记为', 'p_1,p_2,p_3', ',则', '\\SIFChoice', \FigureID{1}]
[6]:
segments.text_segments
[6]:
['如图来自古希腊数学家希波克拉底所研究的几何图形．此图由三个半圆构成，三个半圆的直径分别为直角三角形',
'的斜边',
', 直角边',
', ',
'.',
'的三边所围成的区域记为',
',黑色部分记为',
', 其余部分记为',
'.在整个图形中随机取一点，此点取自',
'的概率分别记为',
',则']
[7]:
segments.figure_segments
[7]:
[\FigureID{1}]
[8]:
segments.figure_segments[0].figure
[8]:
[9]:
segments.formula_segments
[9]:
['ABC',
'BC',
'AB',
'AC',
'\\bigtriangleup ABC',
'I',
'II',
'III',
'I,II,III',
'p_1,p_2,p_3']
[10]:
segments.ques_mark_segments
[10]:
['\\SIFChoice']
Tokenization¶
[20]:
tokens = sif4sci(item["stem"], figures=figures, tokenization=True)
Text¶
[12]:
tokens.text_tokens
[12]:
['如图',
'古希腊',
'数学家',
'希波',
'克拉底',
'研究',
'几何图形',
'此图',
'三个',
'半圆',
'三个',
'半圆',
'直径',
'直角三角形',
'斜边',
'直角',
'三边',
'围成',
'区域',
'记',
'黑色',
'记',
'其余部分',
'记',
'图形',
'中',
'随机',
'取',
'一点',
'此点',
'取自',
'概率',
'记']
Formula¶
[13]:
tokens.formula_tokens
[13]:
['ABC',
'BC',
'AB',
'AC',
'\\bigtriangleup',
'ABC',
'I',
'II',
'III',
'I',
',',
'II',
',',
'III',
'p',
'_',
'1',
',',
'p',
'_',
'2',
',',
'p',
'_',
'3']
[14]:
sif4sci(
item["stem"],
figures=figures,
tokenization=True,
tokenization_params={
"formula_params": {
"method": "ast",
"return_type": "list"
}
}
).formula_tokens
[14]:
['A',
'B',
'C',
'B',
'C',
'A',
'B',
'A',
'C',
'\\bigtriangleup',
'A',
'B',
'C',
'I',
'I',
'I',
'I',
'I',
'I',
'I',
',',
'I',
'I',
',',
'I',
'I',
'I',
'p',
'1',
'_',
',',
'p',
'2',
'_',
',',
'p',
'3',
'_']
[15]:
sif4sci(
item["stem"],
figures=figures,
tokenization=True,
tokenization_params={
"formula_params":{
"method": "ast",
"return_type": "list",
"ord2token": True
}
}
).formula_tokens
[15]:
['mathord',
'mathord',
'mathord',
'mathord',
'mathord',
'mathord',
'mathord',
'mathord',
'mathord',
'\\bigtriangleup',
'mathord',
'mathord',
'mathord',
'mathord',
'mathord',
'mathord',
'mathord',
'mathord',
'mathord',
'mathord',
',',
'mathord',
'mathord',
',',
'mathord',
'mathord',
'mathord',
'mathord',
'textord',
'_',
',',
'mathord',
'textord',
'_',
',',
'mathord',
'textord',
'_']
[16]:
sif4sci(
item["stem"],
figures=figures,
tokenization=True,
tokenization_params={
"formula_params":{
"method": "ast",
"return_type": "list",
"ord2token": True,
"var_numbering": True
}
}
).formula_tokens
[16]:
['mathord_0',
'mathord_1',
'mathord_2',
'mathord_0',
'mathord_1',
'mathord_0',
'mathord_1',
'mathord_0',
'mathord_1',
'\\bigtriangleup',
'mathord_0',
'mathord_1',
'mathord_2',
'mathord_0',
'mathord_0',
'mathord_0',
'mathord_0',
'mathord_0',
'mathord_0',
'mathord_0',
',',
'mathord_0',
'mathord_0',
',',
'mathord_0',
'mathord_0',
'mathord_0',
'mathord_0',
'textord',
'_',
',',
'mathord_0',
'textord',
'_',
',',
'mathord_0',
'textord',
'_']
[17]:
sif4sci(
item["stem"],
figures=figures,
tokenization=True,
tokenization_params={
"formula_params":{
"method": "ast",
"return_type": "formula",
"ord2token": True,
"var_numbering": True
}
}
).formula_tokens
[17]:
[<Formula: ABC>,
<Formula: BC>,
<Formula: AB>,
<Formula: AC>,
<Formula: \bigtriangleup ABC>,
<Formula: I>,
<Formula: II>,
<Formula: III>,
<Formula: I,II,III>,
<Formula: p_1,p_2,p_3>]
[18]:
sif4sci(
item["stem"],
figures=figures,
tokenization=True,
tokenization_params={
"formula_params":{
"method": "ast",
"return_type": "ast",
"ord2token": True,
"var_numbering": True
}
}
).formula_tokens
#### Figure
[18]:
[<networkx.classes.digraph.DiGraph at 0x23356118d00>,
<networkx.classes.digraph.DiGraph at 0x23356118c70>,
<networkx.classes.digraph.DiGraph at 0x23356118d30>,
<networkx.classes.digraph.DiGraph at 0x23356118e80>,
<networkx.classes.digraph.DiGraph at 0x233561189a0>,
<networkx.classes.digraph.DiGraph at 0x233561187c0>,
<networkx.classes.digraph.DiGraph at 0x233561185e0>,
<networkx.classes.digraph.DiGraph at 0x233561186a0>,
<networkx.classes.digraph.DiGraph at 0x23347bc7b50>,
<networkx.classes.digraph.DiGraph at 0x23347bc7a30>]
Downstream tasks¶
Word to vector¶
[19]:
sif4sci(item["stem"], figures=figures, tokenization=True, symbol="fgm")
[19]:
['如图', '古希腊', '数学家', '希波', '克拉底', '研究', '几何图形', '此图', '三个', '半圆', '三个', '半圆', '直径', '直角三角形', '[FORMULA]', '斜边', '[FORMULA]', '直角', '[FORMULA]', '[FORMULA]', '[FORMULA]', '三边', '围成', '区域', '记', '[FORMULA]', '黑色', '记', '[FORMULA]', '其余部分', '记', '[FORMULA]', '图形', '中', '随机', '取', '一点', '此点', '取自', '[FORMULA]', '概率', '记', '[FORMULA]', '[MARK]', '[FIGURE]']
